SCM Kleinschmidt At Grass Mountain Taipei, Taiwan

Joining some military related groups sometimes opens doors. My thanks to the Yahoo group, Commcenter-1 which had some photos of equipment which looked really familiar.

We actually used much of this equipment at Grass Mountain DCS Major Tape Relay in Taipei, Taiwan in 1968-69.

Lip service is paid to Mr. Boudot, who invented the original code in the 1790s. However, when comparing this code card with other codes, it's letter punches are identical to the simplified code New Zealander Donald Murray invented in 1901. Thanks to phulamer for including this card in his Phu Lam collection.



This 1968 Kleinschmidt catalog page displays much of the teletype equipment SCM/Kleinschmidt offered. Thanks to D. Nelson for this one.


Photo from D. Nelson of Nha Trang tape relay or possibly Phu Lam


This is a great picture of a transmitter bank. At 100 wpm, these read stations were an always-busy part of any tape relay.

Not sure of the year, but it looks as though it could have been the late 60s in South Vietnam.
Photo from phulamer

Now, this is a major tape relay send bank at Phu Lam South Vietnam in 1969. Notice the message "trees" in which torn tape messages to be sent were inserted. Atop each "tree" was a routing indicator which had a card printed with the exact location the message would be sent.

Most messages were "Routine", while others were "Priority." Then came "Immediate", and finally the "stop everything and send this"  "Flash" message.

Messages were placed on the tree in order of sending importance from low to high. Flash messages were logged in and sent as fast as possible.

Just to give you a comparison, our RUAG send relay bank in Taipei, Taiwan had about 8 transmitters with a couple of spares. We never sent or received any message which was designated any higher than "SECRET."


Photo from phulamer


On the right are torn tape receive banks at Phu Lam. Incoming messages were read by the specialist to determine the destination.

Then, the soldier then would look for the NNNN at the end of the message.

This meant to tear it off, log it in, and turn around and place it in the send tree. This became second nature after awhile.

The main thing was not to put the message on the wrong tree and not to run out of tape. At the back of this picture is a station where tapes could be corrected.

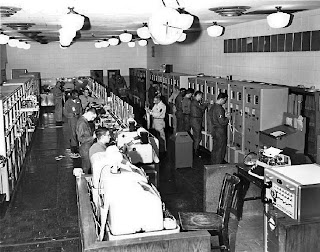

This picture of Asmara shows a tape relay center laid out almost exactly as ours in Taipei, Taiwan. This is Asmara tape relay in Africa. On the far right are the receive banks.

In the middle are the send banks. On the far left are the monitor reels which made a copy of all messages sent. In the foreground is an area which may have been used to correct rejected messages.

In all these photos, I check the floors since ours in Taipei, Taiwan were white with flecks. Every night they were scrubbed, waxed and polished. Thanks to D. Nelson for this one.
Photo from Fynisdbiddle


This final tape relay photo collage was taken at Taegu South Korea. It shows most of what one would find at a major tape relay center.


Photo from duncanancy


For those out there who know the equipment and nomenclature, here is a bunch of it from the AWA Museum in Bloomfield, New York.

Photo from duncanancy

More equipment from AWA Museum, Bloomfield, NY
